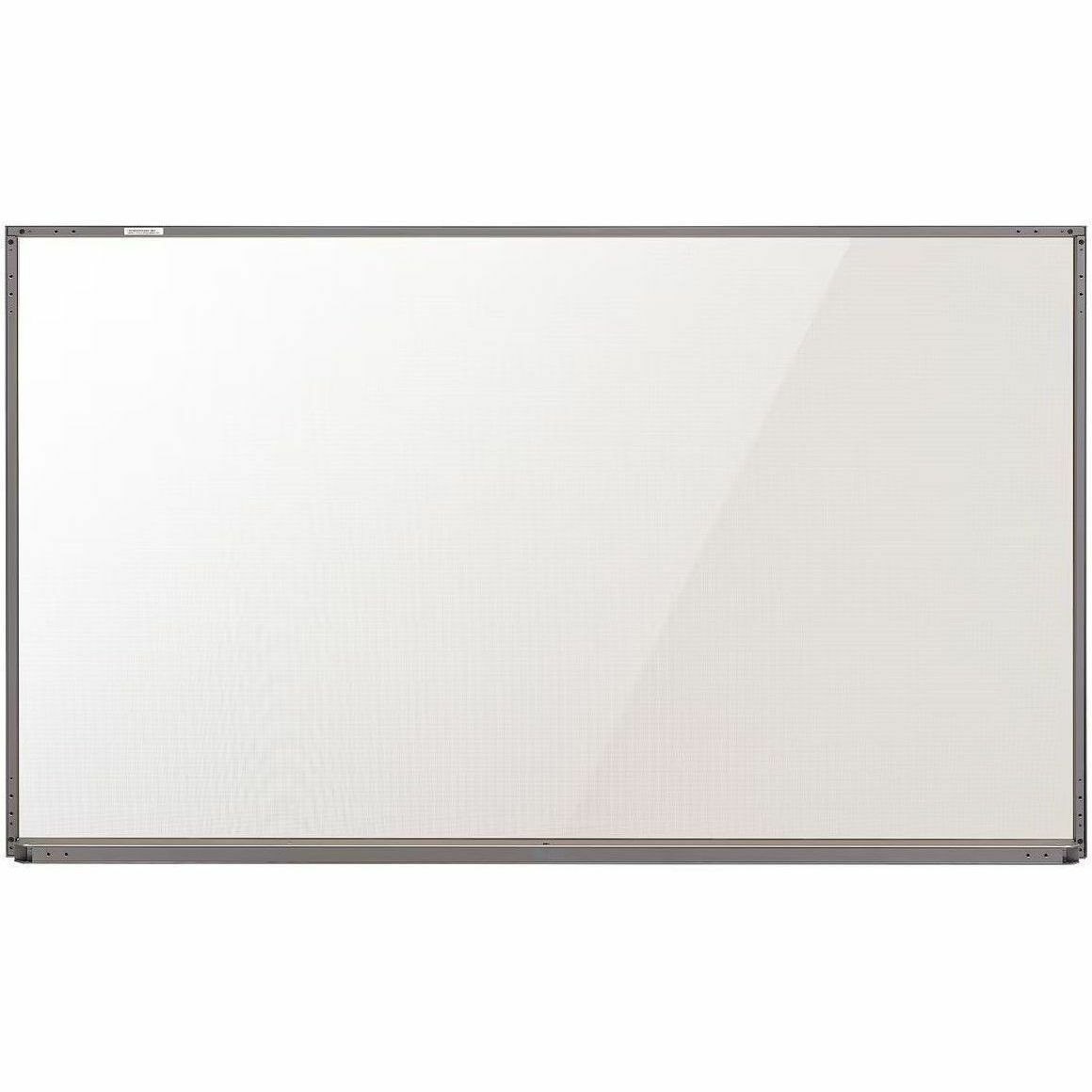

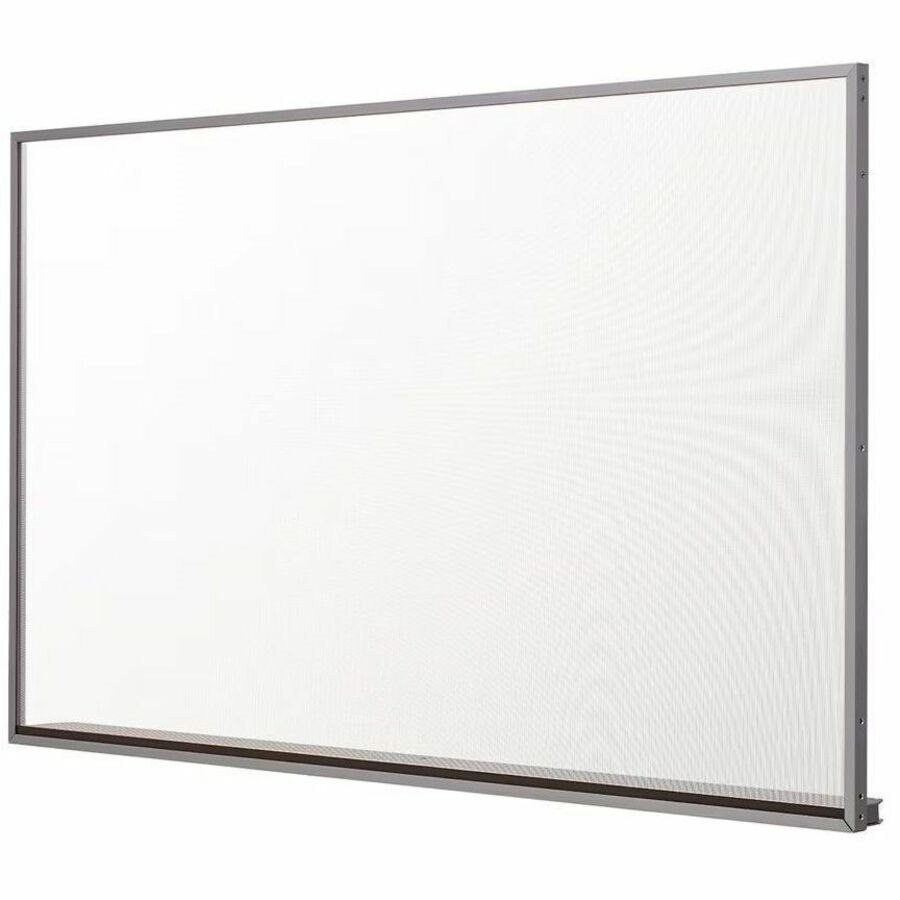

LG 55'' Transparent OLED with Expandable Design

  • Part: 1004577
  • Model: 55EW5P-M
$14,962.00

Availability

In Stock

High Transparency

LG's OLED technology enables the Transparent OLED Signage to have a sleek design without the need for a backlight unit or liquid crystal layer, achieving an impressive 43% transparency. It clearly displays objects behind the screen while overlaying relevant information right in front of them.

Sleek Elegance in Transparency

Connecting spaces and adding a sense of openness, this transparent display boasts a beautiful design that complements high-end furniture and luxurious interiors. Its clean metal finish allows for easy installation on furniture, walls, or practically any desired location.

Expandable Design

Thanks to the improved mechanical design, it can be installed in various ways, whether as a single unit or as a truly transparent wall, to fit existing structures and spaces. Place this product in your dream space to enhance openness and aesthetics.

Convenience of Installation & Stability

This product offers ease and stability during installation thanks to its metal borders and structure. In other words, the metal border applied to the bezel areas enhances the product's rigidity. Additionally, M4 (screw type) holes, which are widely used globally, are incorporated into all rear corners to facilitate installation.

Usage Scenes

Experience the marvel of LG's state-of-the-art Transparent OLED Signage, designed for use in various spaces. This product breaks down the barriers between the screen and reality, seamlessly connecting different spaces, objects, and people.

  • General Information
    • Manufacturer
    • LG Electronics
    • Manufacturer Website Address
    • https://solutions.lg.com/us
    • Brand Name
    • LG
    • Product Type
    • Digital Signage Display
  • Warranty
    • Limited Warranty
    • 3 Year

  • Technical Information
    • Features
    • Anti-reflective
    • 3% Haze
    • FailOver
    • Conformal Coating (Power Board)
    • Shatter Proof
    • Chemical Strengthening
    • Control Manager
    • Auto Set ID
    • Scan Inversion
    • Group Manager
    • TileMatrix Support
    • HDMI (CEC)
    • Daisy Chain Connectivity
    • Temperature Sensor
    • Wake on LAN (WOL)
    • External Input Rotation
    • Bezel Width
    • 0.48"
    • HDCP Version
    • 1.3
    • Surface Hardness
    • 5H
    • Panel Technology
    • OLED
    • Operation Hours
    • 18 Hours/7 Days
    • Maximum Heat Generation
    • 828.2 kJ
    • Content Synchronization
    • RS-232C
    • Embedded CMS
    • Local Contents Scheduling
    • Image Sticking Minimization (ISM) Method
    • Yes
    • Protection Glass Transmission
    • 43%
  • Display & Graphics
    • Viewable Screen Size
    • 55"
    • Display Resolution
    • 1920 x 1080
    • Response Time
    • 100 µs
    • Aspect Ratio
    • 16:9
    • Horizontal Viewing Angle
    • 178°
    • Vertical Viewing Angle
    • 178°
    • Orientation
    • Landscape/Portrait
    • Maximum LED Life
    • 3.4 Year
  • Audio
    • Speakers
    • No
  • Video
    • Standard Refresh Rate
    • 120 Hz
    • Color Depth
    • 10-bit
    • Brightness
    • 200 Nit
    • Color Gamut
    • 90% DCI
    • 110% BT.709
  • Network & Communication
    • Wireless LAN
    • No
    • Bluetooth
    • No
  • Interfaces/Ports
    • Audio Line In
    • No
    • Number of USB 2.0 Ports
    • 1
    • Number of HDMI Inputs
    • 1
    • USB Type-C
    • No
    • DisplayPort Output
    • Yes
    • RS-232C Input
    • Yes
    • RS-232C Output
    • Yes
    • Number of Network (RJ-45) Ports
    • 1
    • Number of Infrared Inputs
    • 1
    • Number of DisplayPort Outputs
    • 1
    • DVI-D In
    • No
    • DisplayPort In
    • Yes
    • Infrared Output
    • Yes
  • Software
    • Operating System
    • webOS 7.5
  • Power Description
    • Input Voltage
    • 120 V AC
    • 230 V AC
    • Power Consumption
    • 230 W
    • Off-Mode Power Consumption
    • 500 mW
    • Power Consumption (DPM)
    • 0.5W
  • Environmental Conditions
    • Minimum Operating Temperature
    • 32°F (0°C)
    • Maximum Operating Temperature
    • 104°F (40°C)
    • Minimum Operating Humidity
    • 10%
    • Maximum Operating Humidity
    • 80%
  • Physical Characteristics
    • Bezel Color
    • Transparent
    • VESA Mount Compatible
    • No
    • Height
    • 28.3"
    • Width
    • 48.7"
    • Depth
    • 3.4"
    • Weight (Approximate)
    • 31.10 lb
    • Front Glass Thickness
    • 0.12"
  • Miscellaneous
    • Package Contents
      • Remote Control, Power Cord, QSG, IR Receiver, Regulation Book, 3.5mm to RS-232C Adapter, MCX / Harness Cables (x4, 3m / x2, 3m for Connection between Panel and Signage Box), DP Cable (2m), LAN Cable (1.5m), RS-232 Cable (4P-4P, 1.5m), LC Cable (VLC, 3m), Screws (x24, M3 Ã- L5.5 Black / x8, M3 Ã- L5.5 Silver / x14, M3 Ã- L6 Black), Cover Shield Assembly, Cable Accessory (x2), Cable Cap Assembly (x2), Tiling Bracket (x2), Signage Box Wing Bracket (x2)
    • Additional Information
      • Surface Treatment (Anti Glare) : No
      • Picture-by-Picture (PBP) : No
      • Smart Energy Saving : No
      • U.S. ePEAT (Environmental) : No
      • Moving Picture Response Time : 8 ms
      • Internal Memory : 16 GB (eMMC)
      • Crestron Certified Compatibility : No
      • Cisco Certified Compatibility : No
      • PoE Type : No
      • BTU Heat Generation (Typ.) : 239 BTU
      • Handle : No
      • Direct Sunlight : No
      • Dimensions Signage Box (W x H x D) : 15 x 8.6 x 2.9 in / 381.6 Ã- 217.6 Ã- 73.6 mm
      • External Speaker Out (3.5 mm) : No
      • Power Loop Out : No
      • HDMI Out : No
      • Power Loop In : No
      • RGB In : No
      • Power In (DC From External PWR Box) : No
      • Anti-Reflective Coating : No
      • Heater : No
      • Heat Dissipation : No
      • OPS Power Built-in : No
      • OPS Compatible : No
      • SNMP : No
      • Idiom® : No
      • SuperSign Media Editor : No
      • SuperSign WB : No
      • ConnectedCare : No
      • UL Certification : No
      • IP Rating (Solid / Liquid Ingress) : No
      • ISTA6 (Packaging) : No
      • Carbon Trust : No
      • DisplayPort In : Yes (x1) HDCP 1.3
      • IR In (3.5 mm) : External IR Receiver
      • External Control : Sharing RS-232C Out
      • RS-232C In (3.5 mm 4-pin) : Yes (x1)
      • RS-232C In (D-sub 9-pin) : No
      • RS-232C Out (3.5 mm) : Yes (x1)
      • Power Type : Built-in Power
      • Local Key Operation : No
    • Certifications & Standards
      • FCC: EMC Class A
      • CE Marking (Regulatory): Yes
    • Energy Star
    • No
    • Environmentally Friendly
    • Yes
    • Environmental Certification
    • ErP
    • Energy Efficiency Compliance
    • Energy-related Products Directive (ErP)
    • TAA Compliant
    • No
    • Compatible Software
    • SuperSign CMS
    • SuperSign Control+
    • SuperSign Cloud
    • Mobile CMS
