10/40 GbE Distributed Chassis Switch for Aggregation/Core

Today's enterprise network core and aggregation layers are quickly moving to 10 and 40 Gigabit Ethernet (GbE) switching as enterprises rapidly adopt applications such as High-Definition (HD) video, Bring Your Own Device (BYOD), and Virtual Desktop Infrastructure (VDI), which drive the need for resilient, high- bandwidth access networks. To meet these challenges, campus network solutions must provide better performance, port density, reliability, security, Quality of Service (QoS), and Total Cost of Ownership (TCO). Likewise, data centers are expanding to accommodate data storage growth. Requirements such as application convergence, non-stop operation, scalability, high availability, and power efficiency are placing even greater demands on the network infrastructure.

Benefits | Performance of Chassis in 1RU

• Deployed as aggregation or core solution
• Wire-speed, non-blocking performance

Industry-Leading 10/40 GbE Port Density

• 32 ports of 40 GbE or 96 ports of 10 GbE
• 2.56 Tbps switching capacity

Increased Reliability and Availability Through Redundancy

• Load-sharing, hot-swappable power supplies
• Ruckus MCT eliminates single point of failure

Advanced L3 Routing Delivers Network Design Flexibility

• OSPF, VRRP, PIM, PBR, BGP, VRRP, VRF

Market-Leading Stacking Scalability

• Up to 12 switches per stack
• Up to 10 km using standard optics or cables

Campus Fabric Reduces Cost of Operations, Increases Flexibility

• Delivers the benefits of a chassis with the flexibility of stackables
• Scales to over 1800 ports

Energy Efficient Use of Power and Cooling Lowers Opex Costs

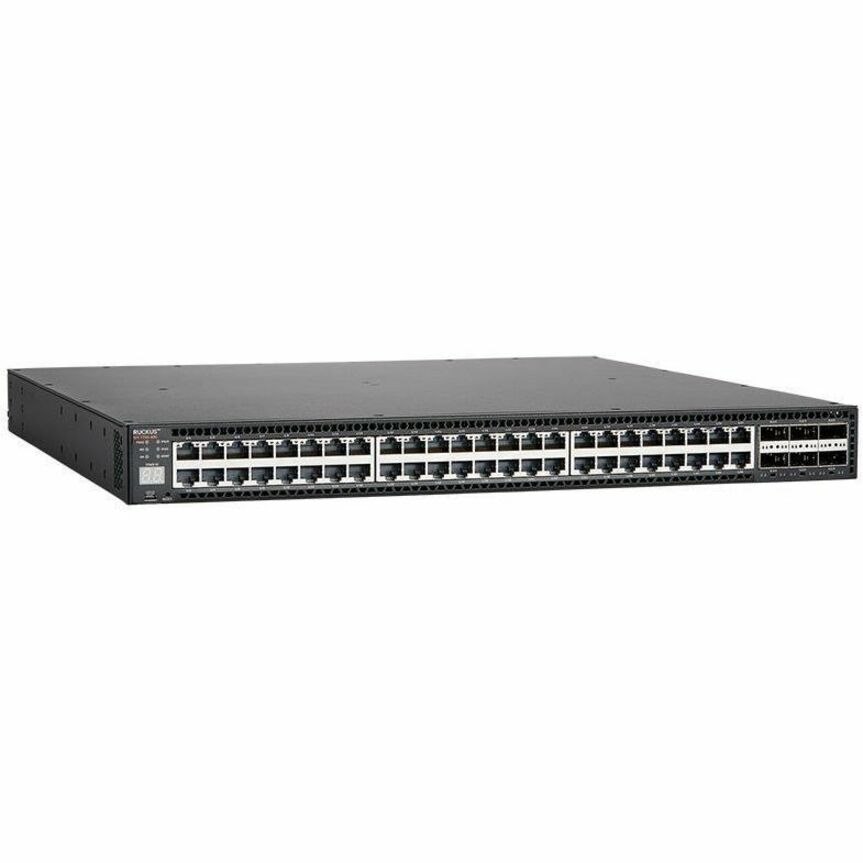

The Ruckus® ICX® 7750 switch delivers industry-leading 10/40 GbE port density, advanced high-availability capabilities, and flexible stacking architecture, making it the most robust Ruckus aggregation and core distributed chassis switch offering for enterprise LANs. In addition to rich Layer 3 features, the Ruckus ICX 7750 scales to 12-unit distributed-chassis stacking and serves as the Control Bridge for Ruckus Campus Fabric technology

Part of the Ruckus ICX family of switches for campus LAN and classic Ethernet data center environments, the Ruckus ICX 7750 switch is a 1U high-performance solution that meets the needs of business-sensitive campus deployments and classic data center environments. With a low latency, cut-through, non-blocking architecture, the Ruckus ICX 7750 provides a cost-effective, robust solution for the most demanding deployments.

Deployed as a standalone switch, a stack, or a network fabric, organizations reap the benefits of a flexible platform and the assurance that their investments are protected.

• General Information
• • Manufacturer
  • CommScope, Inc
  • Manufacturer Website Address
  • http://www.commscope.com
  • Brand Name
  • RUCKUS
  • Product Series
  • ICX 7750
  • Product Type
  • Ethernet Switch

• Warranty
• • Limited Warranty
  • Lifetime
