- General Information
- Manufacturer
- CommScope, Inc
- Manufacturer Website Address
- http://www.commscope.com
- Brand Name
- CommScope
- Product Line
- SmartCell
- Product Type
- Router
The Industry's Most Scalable and Versatile WLAN Platform

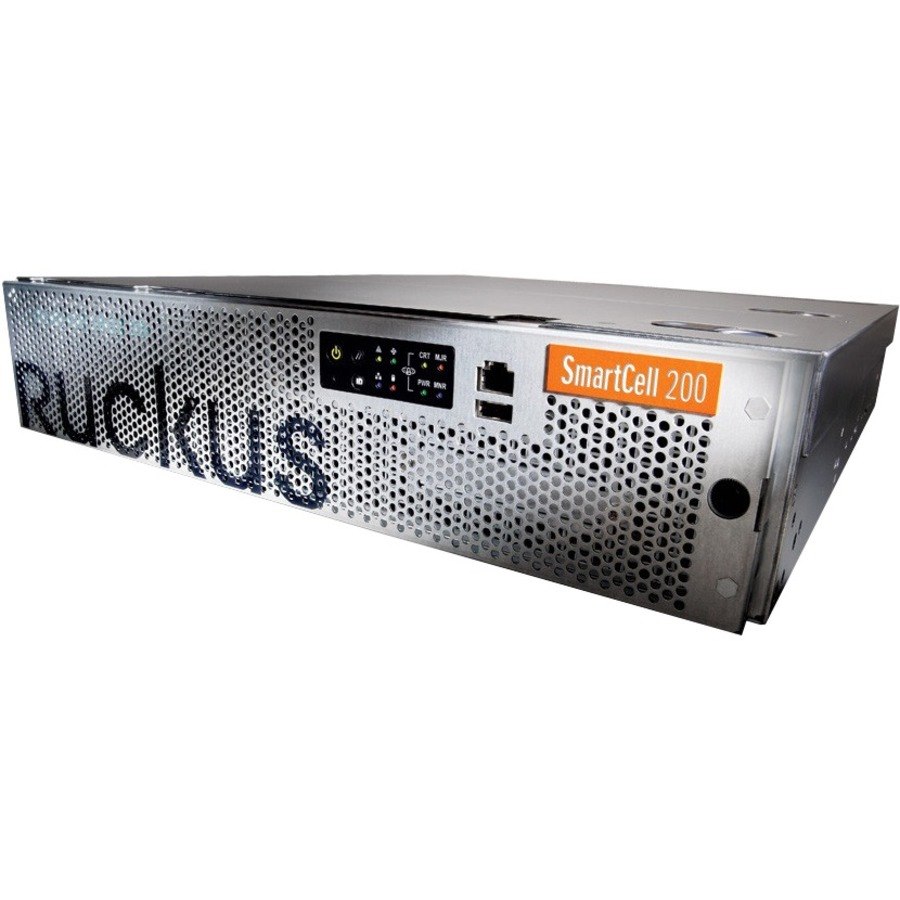

The SmartCell™ Gateway (SCG) 200 represents the first in a new category of scalable and versatile WLAN controllers with support for 3GPP compatible WLAN gateway functionality. It has been designed to eliminate the difficulties service providers and enterprises are experiencing when building and managing large-scale Wi-Fi radio access networks and integrating them into their core networks. It can run in the Cloud or on an external appliance when required. The following is a brief description of some of the features that come with the appliance-based SCG implementation.
- Interfaces/Ports
- Total Number of Ports
- 10
- USB
- No
- Powerline
- No
- Management Port
- Yes
- Network & Communication
- Ethernet Technology
- 10 Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 10GBase-X
- VoIP Supported
- No
- Power Description
- PoE (RJ-45) Port
- No
- Redundant Power Supply Supported
- Yes
- Power Source
- Power Supply
- Physical Characteristics
- Compatible Rack Unit
- 2U
- Form Factor
- Rack-mountable
- Height
- 3.4"
- Width
- 17.1"
- Depth
- 20"
- Weight (Approximate)
- 40 lb
- Miscellaneous
- Package Contents
- SmartCell Gateway 200
- 2 x Data Plane Cards
- Certifications & Standards
- GS
- Environmentally Friendly
- Yes
