- General Information
- Manufacturer
- StarTech.com
- Manufacturer Website Address
- http://www.startech.com
- Brand Name
- StarTech.com
- Packaged Quantity
- 1
- Product Type
- M.2 to U.3 Adapter

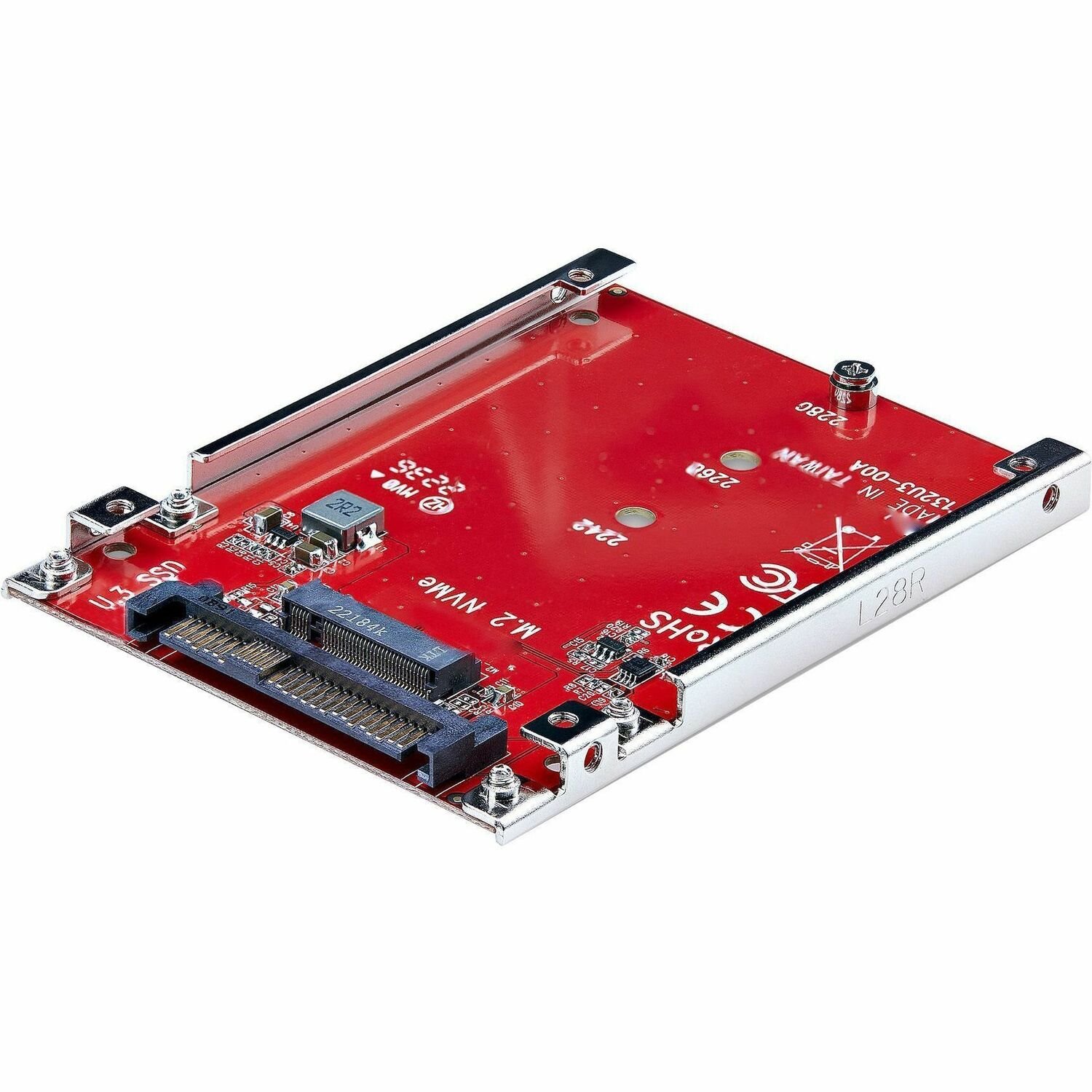

Convert and connect a PCIe M.2 NVMe/AHCI SSD to a 2.5inch form factor to install in a U.3 drive bay or backplane.
Adapt While Retaining Performance
Change the form factor of a 2242, 2260, or 2280 M.2 NVMe drive while maintaining PCIe Gen 4 read and write speeds. This adapter has been designed with no chipset to maintain performance when adapting an M.2 drive to a 2.5-inch form factor.
Hassle-Free Setup
The M.2 to U.3 Host Adapter is compatible with all operating systems, including Windows, macOS, and Linux. No additional drivers or software for installation and operation. The adapter includes M.2 drive and U.3 adapter mounting hardware.
Compatibility
The M.2 to U.3 Host Adapter is backward compatible with earlier versions of M.2 PCIe NVMe drives. It is not compatible with SATA or SAS host controllers, M.2 SATA SSDs, or U.2 host interfaces.
Applications
- Connect an M.2 NVMe SSD to a computer or server through an available U.3 (SFF-TA-1001) connection to increase data storage capacity
- Enhance productivity for data-intensive applications, making it ideal for developers and content creators
- Warranty
- Limited Warranty
- 2 Year
- Physical Characteristics
- Product Color
- Red
- Height
- 0.3"
- Width
- 2.8"
- Length
- 3.9"
- Weight (Approximate)
- 1.31 oz
- Miscellaneous
- Additional Information
Connector(s)
Drive Connectors
- 1 - M.2 (NVMe, M-Key, PCIe x4)
Host Connectors
- 1 - U.3 (PCIe, NVMe, SFF-TA-1001)
Environmental
Operating Temperature
- 0°C to 50°C (32°F to 122°F)
Storage Temperature
- -40°C to 85°C (-40°F to 185°F)
Humidity
- 15% - 90% RH
Hardware
Fan(s)
- No
Interface
- U.3 (PCIe, NVMe, SFF-TA-1001)
Bus Type
- PCI Express
Number of Drives
- 1
Compatible Drive Types
- M.2 (PCIe, NVMe, M-Key, NGFF)
Supported Drive Height(s)
- 2242
- 2260
- 2280
Performance
S.M.A.R.T. Support
- Yes
Hardware Raid Supported
- No
Insertion Rating
- 60 Cycles
MTBF
- 12,368,734 Hours
Power
Output Voltage
- 3.3V DC
Output Current
- 5A
Software
OS Compatibility
- No Drivers or Software Required
- Compatibility
- M.2 NVMe SSDs
- Country of Origin
- Taiwan
- TAA Compliant
- Yes
- Environmentally Friendly
- Yes
- Environmental Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
